Product Overview
This advanced Wall Mounted Electric Boiler (Hydronic Heating Series) offers a truly low-carbon, energy-saving, and environmentally friendly alternative to traditional, pollution-heavy gas or oil-fired boilers. It is a high-efficiency heating solution designed to reduce project costs, energy consumption, and environmental impact.
Core Technology: 3D Labyrinth Heating
At the heart of this system is the 3D Labyrinth Electric Heating Core, which utilizes an innovative method of water-electricity separation. The heating element is fully encapsulated and does not come into direct contact with the circulating water. This eliminates the risk of leakage, electrical shock, and scale buildup, offering the highest level of safety and reliability.
Performance & Reliability
- High Efficiency: Heat conversion efficiency reaches over 98%, delivering significant energy savings and superior performance.
- Stability: The internal mechanical system is highly stable, ensuring reliable long-term operation.
- Durability: Designed for a long service life, typically exceeding 15 years.
Working Principle
The electric heating core heats the water (the heat medium) within the closed-loop system. The fluid is then circulated via a pump to deliver heat to the end-users (radiators/underfloor heating), after which the water returns for reheating, ensuring continuous, stable heat transfer.
Key Features
- High Efficiency: 3D Labyrinth heating structure increases the heat transfer area and improves the utilization rate.
- Fast Heating: Rapid temperature rise and uniform heat distribution.
- Long Lifespan: Built with corrosion-resistant aluminum alloy and copper components for over 15 years of reliable service.
- Safe & Eco-Friendly: No emissions, no open flame, and zero pollution.
- Smart Control System: Supports mobile app remote control, temperature scheduling, and real-time power monitoring.
- Multi-protection Functions: Includes water shortage, overheating, leakage, and anti-freeze protection.
Product Advantages
- WiFi Control / Manual Mode
- 6-Level Power Adjustment
- 8-Stage Time/Temp Settings
- Automatic Fault Diagnosis
- Anti-Freezing Protection
- Dry Firing Prevention
- Water Shortage Protection
- Low/High Voltage Protection
- Dual Power Supply Switch
- Locking Function
- Over-Temperature Protection

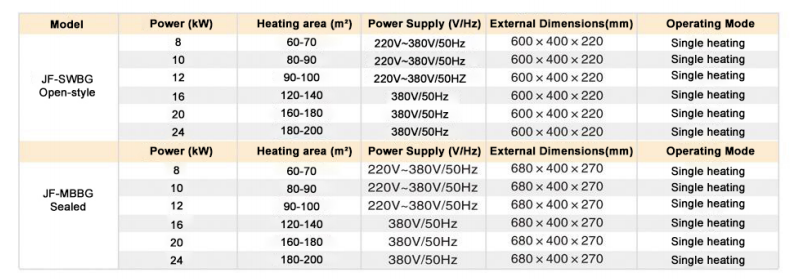

Technical Parameters

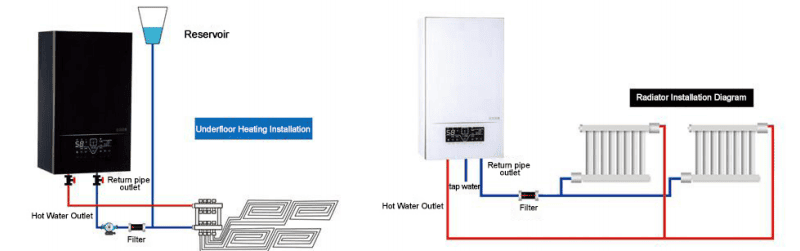

Installation Diagram
